How to send SMS from SQL databases
Ozeki NG SMS Gateway makes it possible to send and
receive SMS text messages using a database server with the help of SQL
queries as database servers allow the sharing of database tables between
two applications. To use this solution you just need to configure your
Ozeki NG SMS Gateway to be able to transmit text messages from databases.
Introduction
SMS messages are one of the easiest and simplest but still
the most efficient ways of communication. SMS can be used both in ordinary and
in business life. In a text message you can include information about
important events, dates, meetings but also about your computer system
and the status of it. In other words you can be informed about your IT
environment by receiving an SMS about it. With the help of Ozeki NG SMS
Gateway SMS functionality can be added for different kinds of applications.
If you are a database developer then you can configure your SMS gateway to
transmit text messages with a database request using the graphical interface
of the software. You just need to insert incoming messages into a database
which periodically checks it for messages to be sent out.
To send and
receive messages from database servers first you need a database such as:
Oracle, Access, MySql, MSSQL, Postgres, Sybase, Informix, SQL Express etc.
Then create two database tables: "ozekimessageout" and "ozekimessagein".
"Ozekimessageout" can be
used for sending messages and you can put an outgoing message into it by an
SQL INSERT command. The Ozeki software checks this table from time to time
and if it finds a new entry sends an SMS about it. Similarly, to receive
messages you can use the "ozekimessagein" table. Ozeki NG SMS Gateway inserts
the incoming
SMS from a mobile phone into this database table and with the SQL Select
command it reads the message (Figure 1). If you create these tables you need
to connect your SMS gateway to your database by an ODBC connection or an
OLEDb connection. This can be configured by a connection string which
includes the database driver name, the IP address, the username, the password
and the name of the database. You also need to install and configure a
database user, a virtual one, to communicate with the database server and
provide the SQL SMS Gateway functionality.
 |

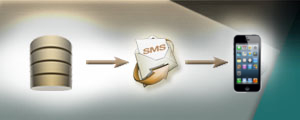

Figure 1 - SMS messaging using a database server
How to install a database user
You need to go to the Users and applications of the
"Management Console" click on "Add" or "Add user" to add a new database user
(Figure 2).
Figure 2 - Adding a user
The appearing window consists of two sections.
In the left one you can see the users that have been installed and
in the right one those who can be installed. Click on the install link
next to the chosen entry to add a user. If you do so a window appears
and here you need to provide a unique name for the user. After this
you will see the user in the list of users in the left section of the
window.
How to configure a database user
A configuration pane automatically opens after the
installation of the user (Figure 3).
Figure 3 - The Configuration pane
The first tab in it is the Database connection in which
you need to define the proper Connection string type. For Open Database
Connectivity, select Odbc. For Object Linking and Embedding Database,
select OleDb. In Connection strings you can modify the data, if necessary,
e.g. if you modify the username or the password. Different database servers
require different connection strings. By default it contains the string of
MySQL database server.
The connection string for the Oracle SQL server:
Provider=MSDAORA.1;Password=YourPassword;UserID=YourUserID;Persist Security
Info=True |
The connection string for the MS SQL server:
Provider=SQLNCLI;Server=YourServer;Database=YourDatabase;UID=YourUsername;
PWD=YourPassword; |
The connection string for the Sybase / SQL Anywhere Server:
Provider=ASAProv.90;UID=MyUsername;PWD=MyPassword;
DatabaseFile=DatabaseFileLocationOnYourComputer.db;
EngineName=Yourdbenginename;Start=YourDatabaseBinaryLocation.exe
-c 32M;AutoStop=Yes |
The connection string for the Postgre SQL server:
DRIVER={PostgreSQL};SERVER=YourServerIP;port=5432;DATABASE=
YourDatabaseName;UID=YourUsername;PWD=YourPassword; |
Please note that you need to enter the connection
strings in one line without line brakes!
In the Date format section defines the date.
To send SMS message you need to configure the SQL for sending tab
(Figure 4). Here, "Use this database connection for sending outgoing
messages" is checked by default and it is recommended if you use it for
this option. Here you can also define how often Ozeki NG SMS Gateway should
check the
outgoing messages and the SQL statements related to these messages.
Figure 4 - The SQL for sending tab
The next tab is SQL for receiving. In this tab you also
need to make some settings. At first it is recommended to check "Use
this database connection for receiving messages". Below you can
modify the SQL Insert statement if necessary. You also can see in this tab
three pairs of edit boxes. They are to change or modify some characters.
By default, it contains some problematic ones (Figure 5).
Figure 5 - The SQL for receiving tab
You can also make logging settings by clicking on the
Logging tab. Here you can check the proper option (if you want the program
to log sent and received messages in human readable format, to log SQL
SELECT statements and/or to log SQL UPDATE statements. You can define the
size and the number of the available log files. By default in the line of
log directory: C:\Program Files\Ozeki\OzekiNG - SMS Gateway\Logs. If you
are satisfied with the default options then leave them unchanged (Figure 6).
Figure 6 - The Logging tab
If you would like to modify the configuration or to view
server events related to a database user you need to go to the "Management
console" and the "Users and applications" panel and here open the user's
account and select what you want to do: To configure or modify the
configuration of a user, click "Configure". To view the latest server events
related to a user, click "Events". To uninstall the user, click on the
"Uninstall" link.
If you use Interbase database you can find
